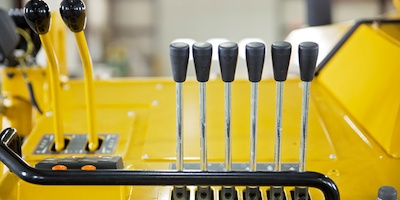

SIMPLE OPERATION.

Mechanical controls provide simple and
reliable operation. Push button keypads for
feeder system and cable operated ground
drive controls allow operation from either
side of the machine.

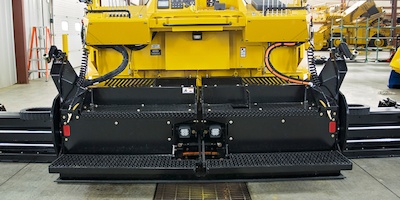

HEAVY DUTY SCREED.

The Weiler designed 3,000 lb (1,360 kg)
screed delivers outstanding mat quality
and a paving range of 7’ 8” (2.3 m) to 14’
4” (4.4 m). Weiler’s patented end gate
design allows quick adjustments for
extension height and joint matching.

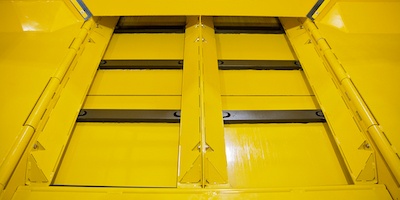

PRECISE CONTROL.

Screed mounted upper and lower 9” (228
mm) augers and independent control of each
side of the delivery system provide precise
material control for variable width paving.
Flow gate style cut-off doors and reversible
augers and conveyors limit spillage between
passes.

DURABLE COMPONENTS.

Highway class chains, conveyor and
auger bearings and direct-drive conveyor
head shaft provide long-term reliability.
Replaceable components maximize the life
of the paver.

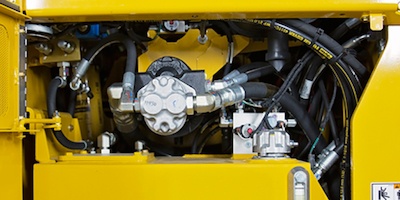

POWER TO PUSH.

Cat® C3.4B Tier 4 engine with 74 hp (55
kW) powers the best-in-class 70” (1778
mm) track length undercarriage through a
2-speed hydrostatic drive. Optional 14” (356
mm) performance, poly pads and standard
125 mm track chain pitch optimize the ride
with a 250 fpm (76 mpm) max transport
speed.

FAST SERVICE.

Remote grease lines, spray down system
with four (4) coiled hoses located on each
corner of the paver, five (5) engine access
doors and Caterpillar dealer service and
support keep your machine up and running
with limited machine down time.

Specifications
Weight 16,200 lbs
Engine C3.4 Tier 4
Horsepower 74 HP (55.2 kW) No DEF
Height 72" (182.9 cm)
Length 141" (358.1 cm)
Track Length End to End 70" (177.8 cm)
Track to Ground Contact 53" (134.6 cm)
Track Chain Pitch 125 mm
Track Rollers 5 per side
Fuel Capacity 26 gal (98.4 L)
Hydraulic Tank Capacity 30 gal (113.6 L)
Truck Clearance 18" (45.7 cm)
Hopper Capacity 7 tons
Augers 9" Ni-Hard
Screed Weight 3,000 lbs (1360 kg)
Main Screed Plate 3/8" x 16.5" (1 x 41.9 cm) Hardox
Extension Screed Plates 3/8" x 9" (1 x 22.9 cm)
Screed Width 7'8" to 14'4" (2.3 m to 4.4 m)
Screed Heat Electric
Vibration 1 x 2,500 VPM
