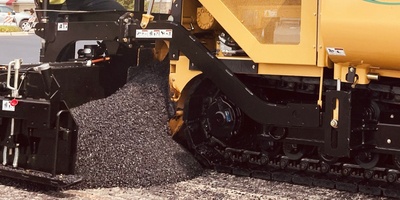

BUILT FOR HIGH PRODUCTION.

Engineered and built to exceed the
demands of commercial paving, the Weiler
P385C incorporates proven designs with
new innovations to provide performance,
reliability and outstanding mat quality in a
wide range of applications.

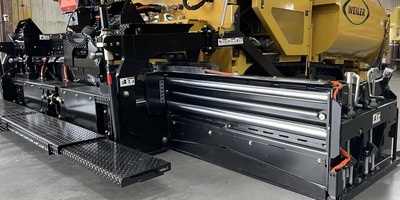

PROVEN SCREED.

The Weiler designed 3,700 lb (1678 kg)
screed delivers outstanding mat quality
and a wide paving range. The 8’ (2.44
m) front mount screed is hydraulically
extendable to 15’ 8” (4.80 m).

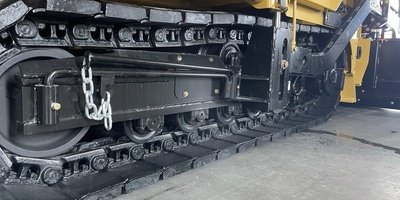

LARGEST UNDERCARRIAGE.

Best-in-class 90” (2286 mm) track length
with 68” (1727 mm) of ground contact and
140 mm track chain pitch provides smooth
ride and excellent flotation. Automatic
track tensioning ensures performance and
maximizes component life.

VISIBILITY AND CONTROL.

The P385C has three different operating
positions allowing for optimal visibility
while the adjustable, magnetic-resistance
intelligent steering system allows for
reliable control.

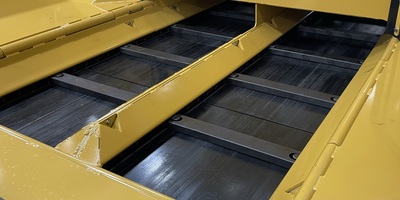

DURABLE COMPONENTS.

Highway class chains, conveyor and auger
bearings provide long-term reliability.
Remote grease lines located on the front
of the counterweight provide easy daily
maintenance.

FAST SERVICE.

Remote grease lines, spray down system
with three coiled hoses and timer, five
engine access doors and Caterpillar dealer
service and support keep your machine up
and running.

Specifications
Weight 22,000 lbs (9979 kg)
Engine Cat ® C3.6 Tier 4F/Stage V
Horsepower 120 HP (90 kw)
Height 76" (1930 mm)
Length 14' 8" (4470 mm)
Transportation Width 102" (2591 mm)
Track Length End to End 90" (2286 mm)
Truck Dump Width Inside 118" (2997 mm)
Track To Ground Contact 68" (1727 mm)
Track Pad Width 14" (356 mm)
Track Gauge 74" (1880 mm)
Track Chain Pitch 140 mm
Track Rollers 6 per side
Track Carrier Rollers 1 per side
DEF Tank Capacity 5 gal (18 L)
Fuel Capacity 40 gal (151 L)
Hydraulic Oil Capacity 30 gal (114 L)
Spray Down Tank Capacity 8 gal (30 L)
Truck Clearance 19" (482 mm)
Hopper Capacity 9 tons (8.1 mt)
Augers 12" (305 mm)
Screed Weight 3,700 lbs (1678 kg)
Main Screed Plate 3/8" x 16.5" (9 x 419 mm) Hardox
Extension Screed Plates 3/8" x 8" (9 x 203 mm) Hardox
Screed Width 8' to 15' 8" (2.4 - 4.8 m)
Screed Crown Adjustment +/- 3%
Screed Heat Electric w/ Thermostatic Control
Vibration 2 x 2,500 VPM
Generator 12 kW
