Windrow Elevators
BUILT FOR HIGH PRODUCTION.

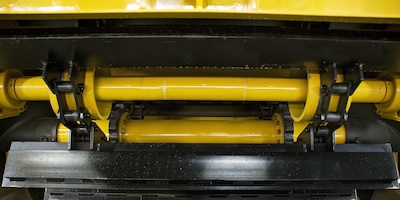

High-slat entry tackles tall windrows with
60” (1524 mm) wide conveyor throat
and 600 tph (544 mtph) capacity. 3-point
suspension and adjustable scrapers ensure
a clean path for the elevator and paver.
RELIABLE POWER.
The Cat® C4.4 Tier 4F engine with 137 HP
(102 kW) produces clean, quiet power.
The elevator is powered by a high-torque,
direct-drive motor which eliminates a
gearbox and is kept cool by a loop flush
return system.
SIMPLE CONTROLS.
Operating controls are located on both
sides of the machine with easy-to-access
chain speed and direction control. Variable
hydraulic drive system allows the speed
of the elevator to match material and
production requirements.
REMIXING DISCHARGE HOPPER.
The optional remixing discharge hopper
provides consistent material mix to the
paver with independent doors to control
material flow and hydraulically moves into
and out of position.

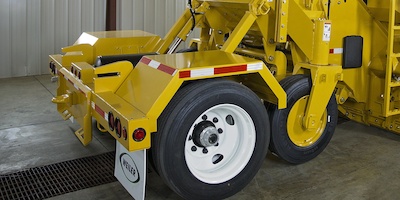

TRANSPORT AXLE.
The optional transport axle simplifies
transportation of the E650C or E550C
windrow elevator at highway speeds. The
axle quickly pins on and off the elevator
and includes a hydraulic tongue for
convenient hook-up to the tow vehicle.
FAST SERVICE.
Two large doors and platforms allow
easy access to the engine compartment.
Electronic controller provides machine
conditions, diagnostics and calibrations.
Caterpillar dealer service, support and
inventoried parts help keep the machine up
and running.
| Specifications | |
|---|---|
| Weight | 21,860 lb (9843 kg) |
| Height | 124" (3,150 mm) |
| Length | 230" (5,842 mm) |
| Length w/ Raised Towing Frame | 188" (4,775 mm) |
| Width w/ Wings In | 122" (3,099 mm) |
| Width w/ Wings Out | 184" (4,674 mm) |
| Engine | Cat® 4.4 Tier 4F, 137 hp |
| Horsepower | 137 hp (102 Kw) |
| Throat Width | 60" (1,524mm) |
| Elevator Slat Width | 58" (1,473 mm) |
| Elevator Slat Depth | 7" (179 mm) |
| Combining Auger Diameter | 29" (737 mm) |
| Discharge Height | 84" (2,134 mm) |
| Front & Rear Wheel Cylinder Lift | 8" (203 mm) |
| Front Tire Size | 22" x 7" (559 mm x 178 mm) |
| Rear Tire Size | 235/75/17.5 |
| Fuel Capacity | 80 gal (303 L) |
| Hydraulic Capacity | 40 gal (151 L) |
