Windrow Elevators
BUILT FOR HIGH PRODUCTION.
Tackle windrows with 121” (3073 mm)
wide conveyor throat and 600 tph (544
mtph) capacity. 84” (2134 mm) discharge
height for increased paver hopper material
storage.
RELIABLE POWER.

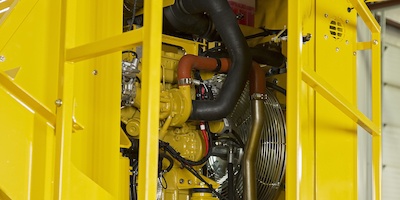

The Cat® C4.4 Tier 4F/Stage V engine with 137 HP
(102 kW) produces clean, quiet power.

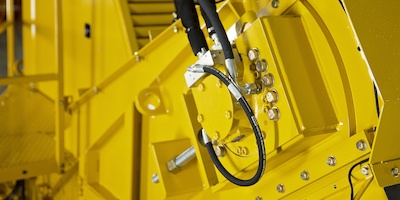

The elevator is powered by a high-torque,
direct-drive motor which eliminates a
gearbox and is kept cool by a loop flush
return system.
SIMPLE OPERATION.

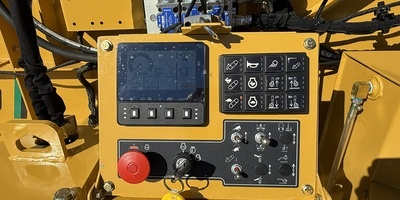

Operating controls are located on both
sides of the machine with easy-to-access
chain speed and direction control. Full color display features machine conditions and diagnostics.

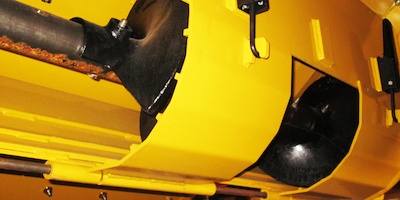

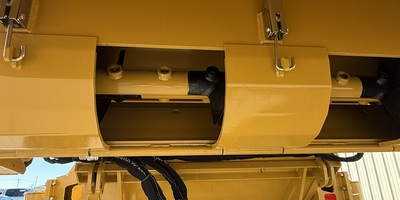

REMIXING DISCHARGE HOPPER.
The optional remixing discharge hopper
provides consistent material mix to the
paver with independent doors to control
material flow and hydraulically moves into
and out of position.
TRANSPORT AXLE.
The optional transport axle simplifies
transportation of the E550D
windrow elevator at highway speeds. The
axle quickly pins on and off the elevator
and includes a hydraulic tongue for
convenient hook-up to the tow vehicle.

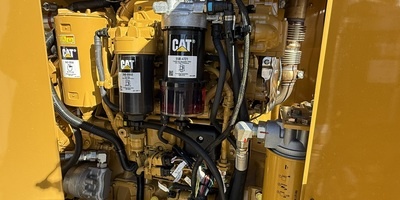

FAST SERVICE.

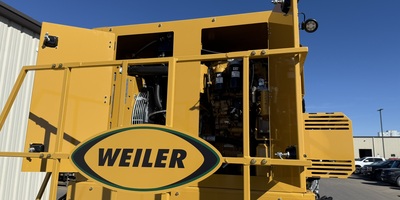

Two large doors and platforms allow
easy access to the engine compartment.
Electronic controller provides machine
conditions, diagnostics and calibrations.
Caterpillar dealer service, support and
inventoried parts help keep the machine
up and running.
| Specifications | |
|---|---|
| Weight | 17,225 lb (7813 kg) |
| Height | 124" (3150 mm) |
| Length | 220" (5588 mm) |
| Length w/ Raised Towing Frame | 186" (4724 mm) |
| Width w/ Wings In | 103" (2616 mm) |
| Width w/ Wings Out | 125" (3175 mm) |
| Engine | Cat® 4.4 Tier 4F |
| Horsepower | 137 hp (102kW) |
| Throat Width | 60" (1524 mm) |
| Elevator Slat Width | 58" (1473 mm) |
| Elevator Slat Depth | 7" (178 mm) |
| Discharge Height | 84" (2134 mm) |
| Front Wheel Cylinder Lift | 8" (203 mm) |
| Front Tire Size | 16" x 7" (406 mm x 178 mm) |
| Rear Tire Size | 235/75/17.5 |
| Fuel Capacity | 50 gal (189 L) |
| Hydraulic Capacity | 20 gal (76 L) |
