Commercial Pavers

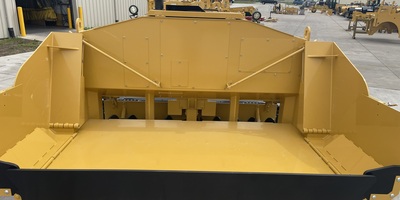

GRAVITY FEED HOPPER
The gravity fed 6-ton (5.4 mt) hopper features an hydraulically raised floor and wings with two independently operated hydraulic cut-off doors for exceptional material management.

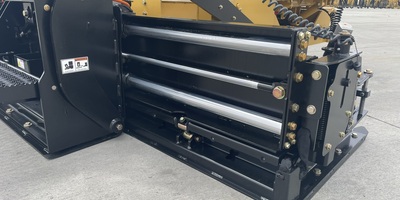

ELECTRIC SCREED HEAT
The Weiler designed screed delivers outstanding mat quality and a standard paving range of 8’ (2.4 m) to 13’ (3.35 m). Four heating elements and optional heated end gates are powered by an hydraulically driven 12 kW generator.

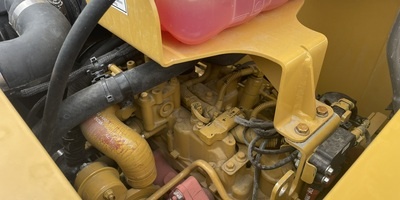

POWERTRAIN
A Cat© C2.2 Tier 4/ Stage V engine provides 60 hp (45 kW) and powers a 2-speed hydrostatic drive with 180 fpm (55 m/min) max paving speed and 300 fpm (91 m/min) max transport speed.

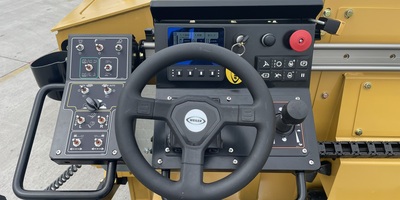

SIMPLE OPERATION

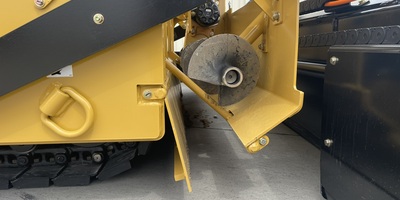

Dual side operation with a sliding control panel with dual electrical joysticks or steering wheel control, tractor mounted augers with cutoff doors and color LCD display providing machine conditions and diagnostics. Screed mounted operator seat optional.
DURABLE UNDERCARRIAGE
The undercarriage features 55” (1397 mm) track length with 39” (990 mm) of ground contact, 12” (305 mm) steel track pads, a sprocket driven 125 mm track chain pitch and automatic track tensioning. 12” (305 mm) molded poly track pad optional.

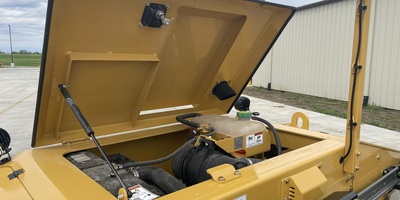

FAST SERVICE
Remote grease lines, spray down system with 7 gal (26 L) tank and coiled hoses, large engine access door and Caterpillar dealer service and support keep your machine up and running with limited down time.
| Specifications | |
|---|---|
| Weight | 12,600 lb 5715 kg |
| Length | 9’ 9” 2.97 m |
| Width | 98” 2.48 m |
| Height | 70” 1.78 m |
| Truck Clearance | 20.75” 557 mm |
| Auger Diameter | 9” 229 mm |
| Screed Weight | 2,100 lb 952 kg |
| Main Plate Width | 13” 330 mm |
| Extension Plate Width | 7” 178 mm |
| Screed Heat | Electric - 4 elements |
| Vibration | 1 x 2500 vpm |
| Max Auger Speed | 125 rpm |
| Engine | Cat® C2.2 Tier 4F/ST V |
| Paving Speed | 180 fpm 55 mpm |
| Transport Speed | 300 fpm 91 mpm |
| Fuel Capacity | 25 gal 94 L |
| Hydraulic Capacity | 22 gal 83 L |
| Spray Down Capacity | 7 gal 26 L |
