Commercial Pavers
BUILT FOR HIGH PRODUCTION.
Engineered and built to exceed the demands of commercial paving, the Weiler P395 incorporates proven designs with new innovations to provide performance, reliability and outstanding mat quality in a wide range of applications.

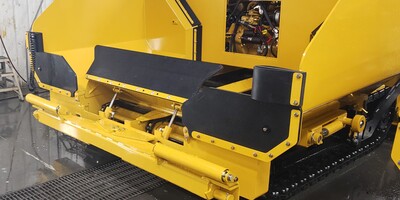

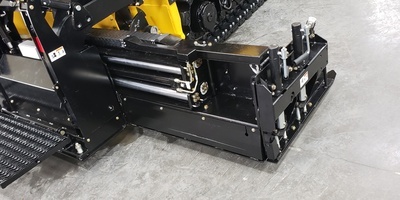

PROVEN SCREED.
The Weiler designed 4,400 lb (1996 kg) screed delivers outstanding mat quality and a wide paving range. The 7’ 8” (2.3 m) front mount screed is hydraulically extendable to 15’ 4” (4.67 m).

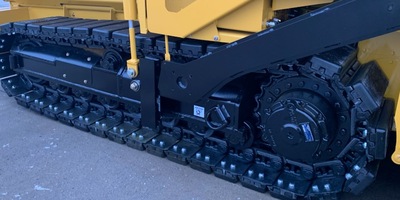

LARGEST UNDERCARRIAGE.
Best-in-class 96” (2438 mm) track length with 74” (1880 mm) of ground contact and 140 mm track chain pitch provides smooth ride and excellent flotation. Automatic track tensioning ensures performance and maximizes component life.

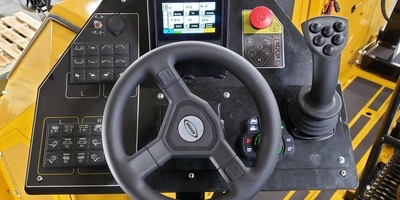

VISIBILITY AND CONTROL.
The P395 has swing out consoles for optimal visibility while the adjustable, magnetic-resistance intelligent steering system allows for reliable control. The joystick allows for automatic functions.

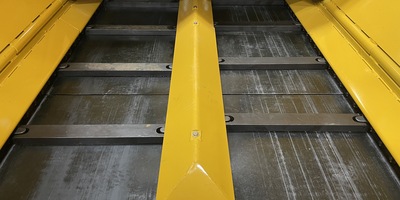

DURABLE COMPONENTS.
Highway class chains, conveyor and auger bearings provide long-term reliability. Remote grease lines located on the front of the counterweight provide easy daily maintenance.

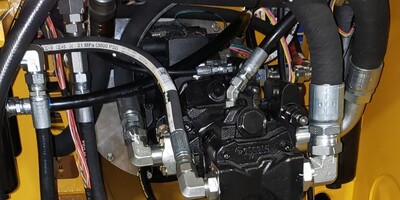

FAST SERVICE.
Remote grease lines, spray down system with 4-10’ (1.2 - 3.0 m) coiled hoses. Hinged engine access doors and Caterpillar dealer service and support keep your machine up and running.
| Specifications | |
|---|---|
| Weight | 25,000 lb (11 340 kg) |
| Length | 15' 2" (4623 mm) |
| Width | 102" (2591 mm) |
| Height | 100" (2540 mm) |
| Truck Clearance | 19" (482 mm) |
| Auger Diameter | 14" (356 mm) |
| Screed Weight | 4,400 lb (1996 kg) |
| Main Plate Width | 16.5" (419 mm) |
| Extension Plate Width | 10" (254 mm) |
| Screed Heat | Electric - 4 elements |
| Vibration | 4 x 2500 vpm max |
| Auger Speed | 150 rpm max |
| Engine | Cat® C3. 6 Tier 4F/Stage V |
| Paving Speed | 150 fpm (45 mpm) |
| Transport Speed | 350 fpm (106 mpm) |
| Fuel Capacity | 32 gal (121 L) |
| Hydraulic Capacity | 30 gal (114 L) |
| DEF Capacity | 5 gal (18 L) |
