Tack Distributors
POWER TO PUMP.

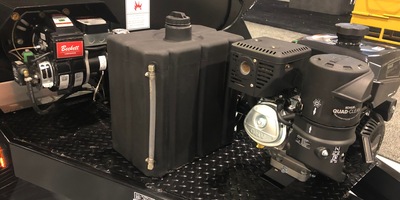

Weiler TT300/TT600 tack distributors are powered by an electric start, 9.5 hp (7.1 kW) Kohler engine. Heavy-duty asphalt pump is hydraulically driven, enabling bi-directional rotation.
HIGH BTU BURNER.

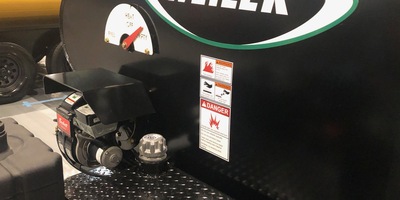

The 300,000 BTU propane burner comes standard. The optional 300,000 BTU diesel burner provides quick and efficient heating time.
SPRAY WAND.

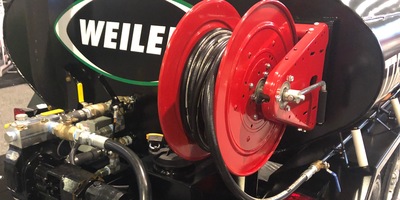

The 5’ 6” (1.7 m) spray wand and 50’ (15 m) hose reel provide optimal coverage range for tight jobsites.
FOLD-ABLE SPRAY BAR.

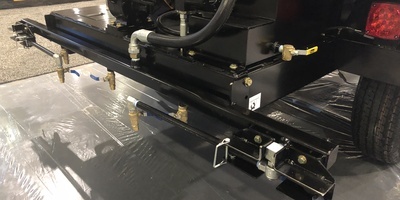

The optional spray bar folds from 6’ (1.8 m) to 9’ (2.7 m) and features 7 independently controlled nozzles for optimal coverage. The optional wireless remote for the spray bar allows operation away from the machine.
SIMPLE OPERATION.

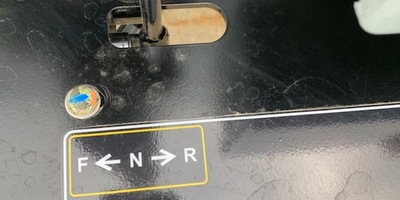

A forward, neutral and reverse valve allows the user to reverse flow for quicker, more even heating. The forward, neutral and reverse valve also allows users to rock the asphalt pump back forth freeing imperfections in the tack. Four easily accessible ball valves control all tack and clean out functions.
HEAVY DUTY TRAILER.

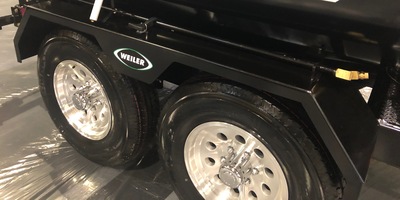

5,000 lb (2268 kg) GVWR trailer for the TT300 and 9,300 lb (4218 kg) GVWR trailer for the TT600. The trailer features either ball or pintle hitch, electric brakes, emergency break-away system, safety tow chains and pre-wired 6 pin connector.
| Specifications | |
|---|---|
| Capacity | 600 gal (2271 L) |
| Shipping Weight | 4,500 lb (2041 kg) |
| Working Weight | 9,300 lb (4218 kg) |
| Height | 81" (2057 mm) |
| Length | 174" (4419 mm) |
| Width | 77" (1956 mm) |
| Burner | 1 x 300,000 BTU |
| Heat | Propane/Diesel Option |
| Engine | Gas/Diesel 9.5 hp (7.1 kW) |
| Spray Bar | 9 nozzles w/12' coverage |
| Pump | Hydraulic Driven |
| Flush Tank | 6 gal (23 L) |
