Tack Distributors
![](/upl/images/content-blocks/61e6e8b1bc8d3316ca8a8-0eeef6bf.jpg)

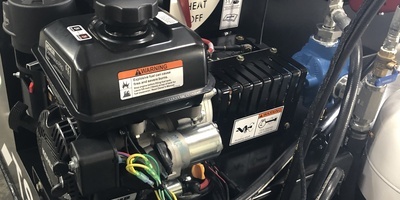

POWER TO PUMP.
Weiler TS250 tack distributors are powered by an electric start, 5.5 hp (4.1 kW) Kohler engine. The direct-drive pump is designed for asphalt with a capacity of 10 gpm (38 L/min).
![](/upl/images/content-blocks/61e6e8b1bf13e311af295-56e63c5b.jpg)

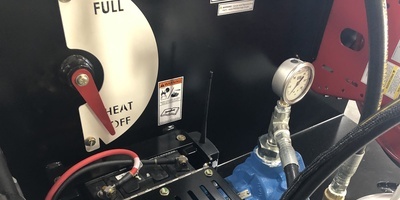

HIGH BTU BURNER.
The 300,000 BTU propane burner comes standard. The optional 300,000 BTU diesel burner provides quick and efficient heating time.
![](/upl/images/content-blocks/61e6e8b1c1225536e709f-8021aaca.jpg)

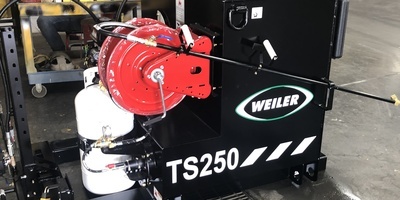

SPRAY WAND.
The 5’ 6” (1.7 m) spray wand and 50’ (15 m) hose reel provide optimal coverage range for tight jobsites.
![](/upl/images/content-blocks/61e6e8b1c2dc911e39da5-cdd28d8e.jpg)

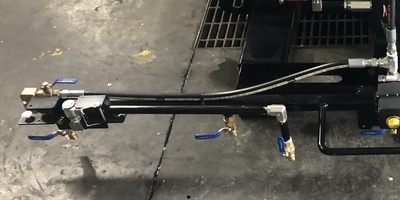

FOLD-ABLE SPRAY BAR.
The optional spray bar folds from 6’ (1.8 m) to 9’ (2.7 m) and features 7 independently controlled nozzles for optimal coverage. The optional wireless remote for the spray bar allows operation away from the machine.
![](/upl/images/content-blocks/61e6e8b1c4a81215256f5-2352d6b3.jpg)

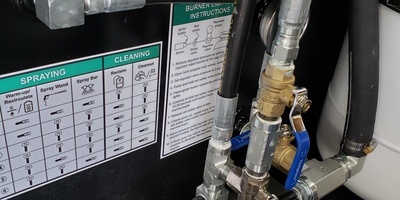

SIMPLE OPERATION.
Valve operation decals clearly specify machine setup for warm-up/recirculation, spray, reclaim and cleanout operaitons.
Specifications | |
---|---|
Capacity | 250 gal (946 L) |
Shipping Weight | 1,350 lb (612 kg) |
Working Weight | 3,725 lb (1690 kg) |
Height | 61" (1549 mm) |
Length | 64" (1638 mm) |
Width | 52" (1321 mm) |
Burner | 1 x 300,000 BTU |
Heat | Propane/Diesel Option |
Engine | Gas Diesel 5.5 hp (4.1 kW) |
Spray Bar | 7 nozzles w / 10' coverage |
Pump | Direct Driven |
Flush Tank | 10 gal (38 L) |
