Road Wideners
ONE TOUCH HANDLING.
When it comes to placing the right amount
of material at the correct grade and slope
in one pass, whether on a shoulder or
elsewhere, the best equipment for the job
is a Weiler road widener.

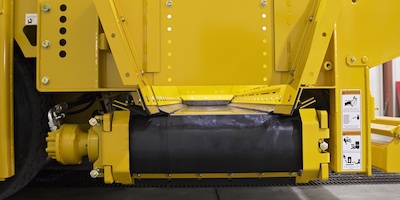

MATERIAL DELIVERY.
A 3.5 yd3 (2.6 m3) hopper means fewer
truck exchanges during the workday. The
30” (762 mm) wide belt and 800 fpm (242
mpm) belt speed provides quick placement
of materials to either side of the machine.

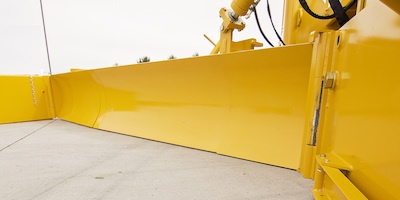

The hydraulically adjustable dump hopper
accommodates varying trucks.

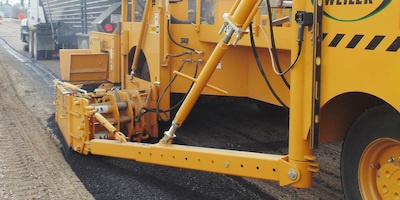

PRECISE STRIKE-OFF.
25” (635 mm) tall strike-off tools widen from
1’ (.3 m) to 14’ (4.2 m) and are capable of
placing material up to 12” (305 mm) above
and below grade. Multiple tool sizes plus
hydraulically adjustable tools ensure precise
strike-off and can be set to exact grade and
slope specifications.

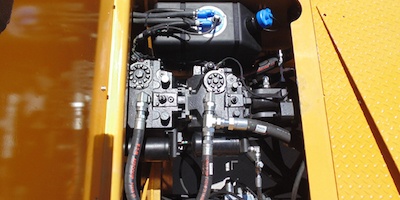

RELIABLE POWERTRAIN.

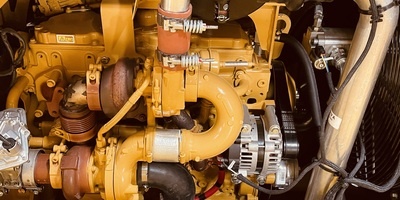

The W730 has the power to push. A Cat®
C4.4 Tier 4F/StageV engine with 174 hp (129 kW)
powers the 4-wheel drive, 4-wheel steer
widener. Hydrostatic drive with 2-speed
motor and 2-speed gearbox delivers 350
fpm (106 mpm) working speed and 12 mph
(19 km/hr) transport speed.

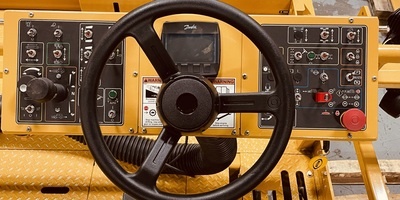

VISIBILITY AND CONTROL.
All controls are located on a single panel
within easy reach of the operator. Sliding
control console enhances operator ease
of use, enabling both left and right side
access to all machine controls. The operator
is located back from the dump hopper and
toward the outer edge of the machine for
increased visibility.
FAST SERVICE.
Self cleaning pulleys minimize material
build-up and large doors enable easy access
to engine and machine components. Built-in
tool storage locations provide home spots
for all components needed on the job.
Caterpillar dealer service and support keep
your machine up and running with limited
down time.
| Specifications | |
|---|---|
| Weight | 34,160 lb (15,495 kg) |
| Optional Counterweight | 3,500 lb (1,588 kg) |
| Length | 26' (7925 mm) |
| Width | 10' (3048 mm) |
| Height | 7'8" (2336 mm) |
| Wheel Base | 180" (4,572 mm) |
| Hopper Capacity | 3.5yd (2.6m) |
| Conveyor Length | 10' (3048 mm) |
| Conveyor Width | 30" (762 mm) |
| Conveyor Shift | 6" (152 mm) |
| Belt Speed | 800 fpm (242 mpm) |
| Turning Radius | 14' (4.3 m) |
| Engine | Cat® C4.4 Tier 4F/Stage V |
| Max Working Speed | 350 fpm (106 mpm) |
| Transport Speed | 12 mph (19km/hr) |
| Fuel Capacity | 61 gal (231 L) |
| Hydraulic Capacity | 51 gal (193 L) |
| Def Capacity | 5 gal (19 L) |
