Remixing Transfer Vehicles
NON-STOP, NON-CONTACT PAVING.

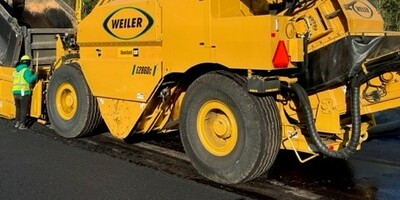

With 25 tons (22.7 mt) of onboard storage, triple pitch remix augers and 600 tph (544 mtph) discharge capacity, the E2860C keeps the paving train moving while reducing particulate and thermal segregation for smooth, long-lasting roads.
MATCH PAVING OUTPUT.

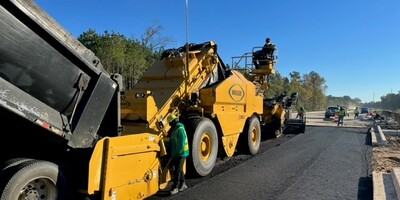

The variable speed elevator and conveyors allow the E2860C to match plant output while reducing wear. By setting chain speed to match production, the number of revolutions of the chain are reduced and larger packets of mix are carried with each slat, reducing material segregation.
UNMATCHED MANEUVERABILITY.
The rear steer option provides an inside turning radius of 15’ (4.6 m). The crab and coordinated steering functions return to center with the auto center feature providing enhanced control on tight jobsites and when loading and unloading for transport.

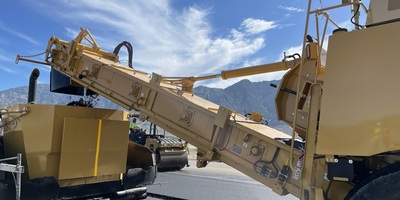

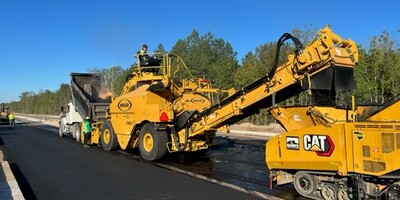

PAVER HOPPER MANAGEMENT
The optional paver hopper management system includes distance to paver which maintains a set distance between the MTV and paver, conveyor auto center that keeps the conveyor centered over the hopper insert and a sonic sensor that manages output of the storage elevator and conveyor to maintain consistent material in the paver hopper insert.

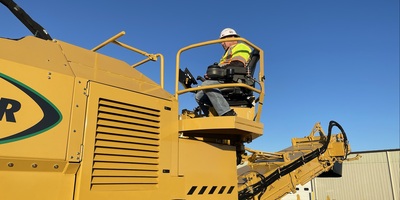

REAR MOUNTED OPERATOR PLATFORM
The hydraulically adjustable rear mounted operator's platform swings in and out and adjusts up and down providing excellent visibility to the front and rear of the machine. The touchscreen color display gives the operator complete control within easy reach.

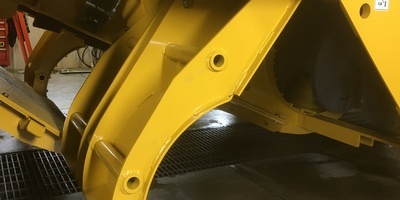

DESIGNED AROUND CLEANOUT.
Full-width, hydraulic drop down floors along with four clam-shell doors for ground level access to the storage hopper and remix augers provide unmatched access for daily cleanout and weekly inspections. With the addition of the optional internal spray down system for chains and sprockets, the E2860C is designed to simplify the critical daily clean-out process.
| Specifications | |
|---|---|
| Weight | 72,500 lb (32,885 kg) |
| Transport Height | 11’ 5” (3.48 m) |
| Transport Length | 54’ 6” (16.61 m) |
| Transport Width | 9’ 10” (3.0 m) |
| Working Height | 16’ (4.88 m) |
| Engine | Cat® C7.1 Tier 4F/Stage V |
| Horsepower | 300 hp (223 kW) |
| Transport Speed (Max) | 10 mph (16.1 km/hr) |
| Working Speed (Max) | 194 fpm (59 mpm) |
| Conveyor Capacity | 600 tph (544 mtph) |
| Conveyor Slat Width | 36” (914 mm) |
| Elevator Capacity | 1,000 tph (907 mtph) |
| Elevator Slat Width | 56” (1422 mm) |
| Fuel Tank Capacity | 150 gal (568 L) |
| Hydraulic Tank Capacity | 115 gal (435 L) |
| Turning Radius | 15’ (4.57 m) |
| Tires | High Flotation 21”-25” 28 ply |
| Ground Drive | 4-Wheel Hydrostatic w/ 3 Speeds |
