Remixing Transfer Vehicles
NON-STOP, NON-CONTACT PAVING.
With 18 tons (16.3 mt) of onboard storage, triple pitch remix augers and 600 tph (544 mtph) discharge capacity, the E1650A keeps the paving train moving while reducing particulate and thermal segregation for smooth, long lasting roads
MATCH PAVING OUTPUT.

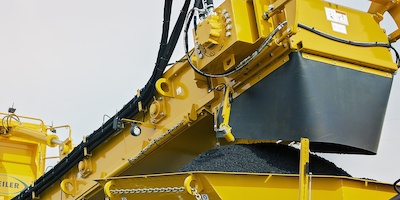

The variable speed elevator and conveyors
allow the E1650A to match plant output
while reducing wear. By setting chain
speed to match production, the number of
revolutions of the chain are reduced
and larger packets of mix are carried with
each slat, reducing material segregation.

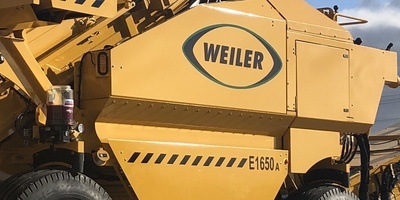

NARROW TIRE WIDTH.
The 8’ 6” (2.6 m) width from outside of tire to outside of tire of the E1650A provides room to work for the ground operator. The narrower width, along with 17’ (5.2 m) inside turning radius, provides excellent maneuverability on narrow roads.
MATERIAL MANAGEMENT.
The storage hopper management system features a sonic sensor that measures the material in the storage hopper. The paver hopper management system automatically controls the speed of discharge conveyor and storage elevator to maintain a consistent level of material while the distance to paver radar maintains distance between the E1650A and paver.
COMPLETE CONTROL.
The 24” (610 mm) shifting operating platform with ergonomic controls is located at the front of the machine for exceptional visibility and comfort. The operator station shifts side-to-side and features a high-back, heated suspension seat that rotates 357°.
DESIGNED AROUND CLEANOUT.
Full-width, hydraulic drop down floors along
with four clam-shell doors for ground level
access to the storage hopper and remix
augers provide unmatched access for daily
cleanout and weekly inspections. With the
addition of the optional internal spray
down system for chains and sprockets, the
E1650A is designed to simplify the critical
daily clean-out process.
| Specifications | |
|---|---|
| Weight | 67,200 lb (30,481 kg) |
| Storage Capacity | 18 tons (16.3 mt) |
| Transport Height | 11' 5" (3,480 mm) |
| Transport Length | 54' 1" (16,485 mm) |
| Transport Width | 9' 10" (2,997 mm) |
| Working Height | 15' (4,572 mm) |
| Engine | Cat® C7.1 Tier 4F/Stage V |
| Horsepower | 250 hp (186 kW) |
| Transport Speed (Max) | 9 mph (14.5 km/hr) |
| Working Speed | 202 fpm (61 mpm) |
| Conveyor Capacity | 600 tph (544 mtph) |
| Conveyor Slat Width | 36" (914 mm) |
| Elevator Capacity | 1,000 tph (907 mtph) |
| Elevator Slat Width | 56" (1,422 mm) |
| Fuel Tank Capacity | 110 gal (416 L) |
| Hydraulic Tank Capacity | 80 gal (303 L) |
| Turning Radius - Rear Steer | 17' (5.2 m) |
| Tires | High Flotation 18"-25" 28 ply |
| Ground Drive | 4 Wheel Hydrostatic w/ 3 Speeds |
