Broom
- Models:
- B400
INNOVATIVE DESIGN.

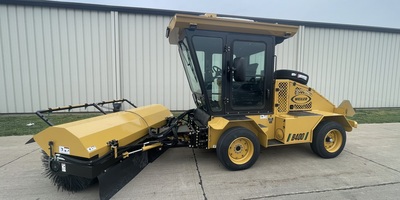

The B400 is the most innovative self-propelled broom on the market with features designed with years of industry experience. Built to withstand the demands of road construction, milling operations and all construction site needs.
QUICK CHANGE BRUSH HEAD.

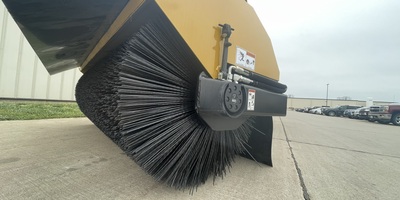

The 77.5” (1969 mm) floating brush head features variable down pressure and a hydraulic quick change arm allowing for broom changes in less than 2 minutes. Optional 24” (610 mm) side shift and angling brush head available.
POWER TO PERFORM.

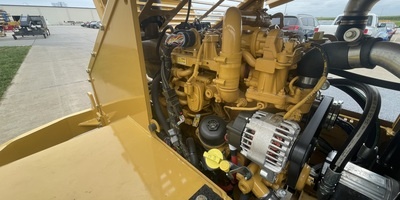

The B400 features the Cat® C2.8 Tier 4 Final/ Stage V engine with 74 hp (55 kW) powers the 2-speed wheel motors with high speed transport mode and low speed sweeping mode.
EXCELLENT VISIBILITY.

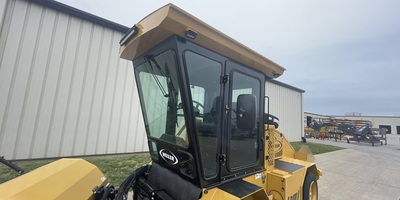

The fully enclosed cab provides excellent operator visibility and features 2 cab doors with tinted sliding windows. The cab is pressurized with a high efficiency filter system.
EASY TO OPERATE.

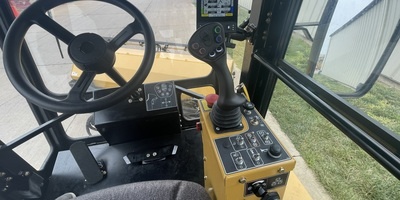

The B400 features intuitive controls with a multi-function joystick, full color display and foot pedal or joystick propel option. Optional Bluetooth® radio with 2 speakers available.
UNMATCHED ACCESSIBILITY.

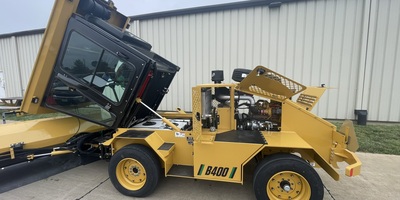

The hydraulic tilting cab provides access to the optional 100 gal (379 L) water tanks. Multiple doors provide access to the engine and hydraulic components. Caterpillar dealer service and support to keep your machine up and running.
| Specifications | |
|---|---|
| Operating Weight | 10,200 lb 4626 kg |
| Height | 105” 2.67 m |
| Length | 204” 5.18 m |
| Length w/side shift | 213” 5.41 m |
| Wheelbase | 78” 1.98 m |
| Brush Length | 77.5” 1969 mm |
| Brush Frame Width | 86” 2184 mm |
| Opt. Brush Length | 89.5” 2273 mm |
| Opt. Brush Side Shift | 24” 610 mm |
| Opt. Water System | 100 gal 379 L |
| Engine | Cat® C2.8 Tier 4F/Stage V |
| Horsepower | 74 Hp 55 kW |
| Max Transport Speed | 18 mph 29 km/hr |
| Max Work Speed | 9 mph 14 km/hr |
| Fuel Capacity | 35 gal 132 L |
