Soil Stabilizer
- Models:
- S200

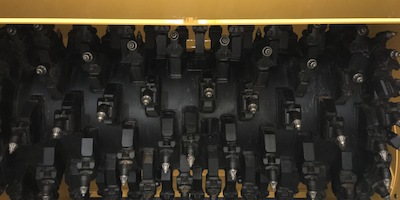

ROTOR OPTIONS.
Available with either a soil or combination
rotor powered by dual planetary drive
motors with a max drum speed of 150 rpm.
The 78” (1981 mm) wide drum has a max
working depth of 14” (355 mm).
AUTO DEPTH SET POINT.
The automatic depth set point feature
allows the operator to set the desired rotor
depth and return to that same depth with
the push of a button on the joystick. Depth
reading is visible to the operator on the full
color display.
AUTO LOAD CONTROL.
The automatic load control feature monitors
system pressures to set ground speed to
maximize efficiency of the machine and
eliminate overloading the mixing chamber
and stalling the rotor.

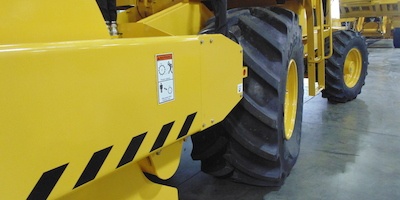

REAR STEER OPTION.
The optional rear steer reduces the turning
radius from 37’ (11.3 m) to 23’ (7 m) for
high maneuverability on tight jobsites. The
rear steer provides four steering modes:
front steer, rear steer, crab steer and
coordinated steer and features an auto
return to center.
MACHINE TILT OPTION.
The optional machine tilt feature allows
the S200 to tilt up to 5° in either direction
to match grade conditions and provide
excellent gradation in varying applications.
COMFORT AND CONTROL.
The operator seat slides across the platform
and rotates 357° providing excellent
visibility for the operator. High-back,
suspension seat and easy-to-reach controls
provide a comfortable working environment
with angled ladder access from both sides
of the machine.
| Specifications | |
|---|---|
| Weight | 42,000 lb (19,051 kg) |
| Height | 11' 5" (3,480 mm) |
| Length | 27' 8" (8,432 mm) |
| Width | 8' 6" (2,591 mm) |
| Wheelbase | 129' (3,276 mm) |
| Ground Clearance | 19" (482 mm) |
| Engine | Cat® C9.3B Tier 4F/Stage V |
| Horsepower | 375 hp (279 kW) |
| Transport Speed (Max) | 9 mph (14 km/hr) |
| Working Speed (Max) | 180 fpm (55 mpm) |
| Cutting Width | 78" (1,981 mm) |
| Cutting Depth (Max) | 14" (355 mm) |
| Drum Diameter W/ Teeth | 48" (1,219 mm) |
| Drum Speed (Max) | 150 rpm |
| Fuel Tank Capacity | 190 gal (719 L) |
| Hydraulic Tank Capacity | 90 gal (340 L) |
| Front Tires | 14.9-24 8 PR |
| Rear Tires | 28LR26 165 LI |
