Road Wideners
ONE TOUCH HANDLING.
When it comes to placing the right amount
of material at the correct grade and slope
in one pass, whether on a shoulder or
elsewhere, the best equipment for the job
is a Weiler road widener.

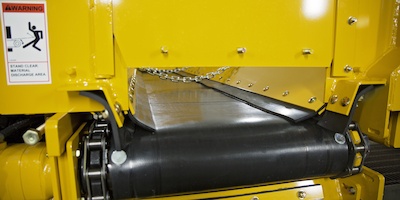

MATERIAL DELIVERY.
A 3.2 yd3 (2.4 m3) hopper means fewer
truck exchanges during the workday. The
24” (610 mm) wide belt and maximum 400
fpm (121 mpm) belt speed provide quick
placement of materials to either the right
or left side of the machine.
PRECISE STRIKE-OFF.
25” (635 mm) tall strike-off tools widen from
1’ (.3 m) to 8’ (2.4 m) and are capable of
placing material up to 12” (305 mm) above
and below grade. Multiple tool sizes plus
hydraulically adjustable tools ensure precise
strike-off and can be set to exact grade and
slope specifications.

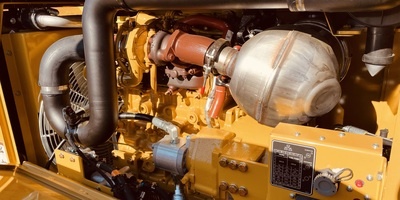

RELIABLE POWERTRAIN.
A Cat® C2.8 Tier 4F/Stage V engine with
74 hp (55 kW) powers the front wheel
hydrostatic drive with 2-speed motor and
2-speed transmission for 274 fpm (83
mpm) working speed and 11 mph
(17.1 km/hr) transport speed.

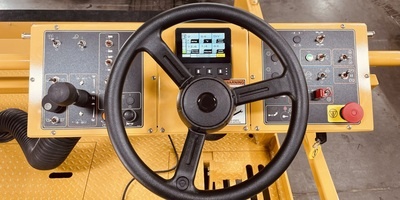

VISIBILITY AND CONTROL.
All controls are located on a single panel
within easy reach of the operator. The
operator is located back from the dump
hopper and toward the outer edge of the
machine for increased visibility.

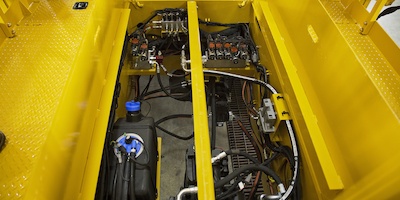

FAST SERVICE.
Self cleaning pulleys minimize material
build-up and large doors enable easy
access to engine and machine components.
Caterpillar dealer service and support keep
your machine up and running with limited
down time.
| Specifications | |
|---|---|
| Weight | 19,500 lbs (8845 kg) |
| Length | 19' (5791 mm) |
| Operating Width | 10' (3048 mm) |
| Transport Width | 10' (3048 mm) |
| Height | 7' 11" (2441 mm) |
| Wheel Base | 117" (2971 mm) |
| Hopper Capacity | 3.24 yd (2.48m) |
| Conveyor Length | 10' (3048 mm) |
| Conveyor Width | 24" (610 mm) |
| Belt Speed | 400 fpm (121 mpm) |
| Max Working Speed | 274 fpm (83 mpm) |
| Transport Speed | 11 mph (17.1 km/hr) |
| Engine | Cat® C2.8 Tier 4F/Stage V |
| Horsepower | 74 hp (55kW) |
| Turning Radius | 13' (3.9m) |
| Rear Steer Turn Radius | 8' (2.3 m) |
| Fuel Capacity | 64 gal (242 L) |
| Hydraulic Capacity | 52 gal (196 L) |
