Grader
- Models:
- G65
A LINEAGE OF MARKET LEADERS.
Built from a lineage of market leaders for more than 70 years, the G65 dates back to 1949 and the Allis Chalmers “D”. Weiler has owned, engineered and enhanced the G65 since 2000 as the industry leading compact motor grader.

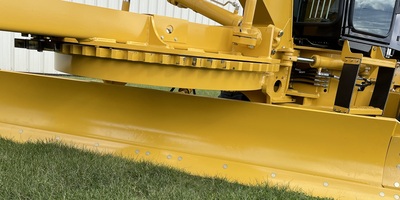

BIG GRADER FEATURES.
The 53” (1346 mm) circle with “A” frame drawbar and standard features not available on competitive models give the G65 the benefit of big grader performance in a compact package.

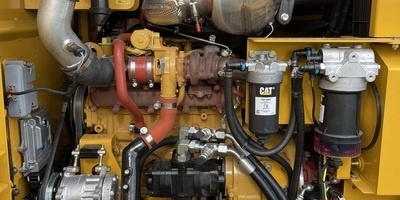

POWER TO PERFORM.
The Cat® C3.6 Tier 4F/Stage V engine with 120 hp (89 kW), powershift transmission with 6 forward and 2 reverse speeds and high capacity torque converter provide power and performance to maximize productivity.

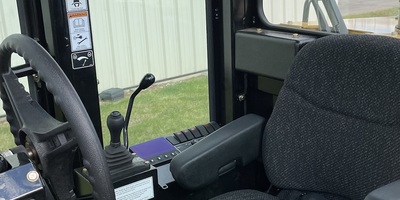

COMFORT AND CONTROL.
Canopy or optional cab with air suspension seat, air conditioning and AM/FM bluetooth radio. The adjustable control console features easy to operate hydraulic controls for articulation, circle side shift, circle turn, moldboard lift/lower, moldboard side shift and wheel lean. Cat® style blade control option available.

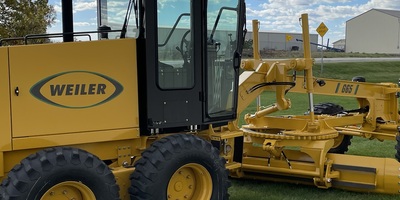

VERSATILITY WITH OPTIONAL EQUIPMENT.
The optional moldboard extensions, bank slope, scarifier, dozer blade and ripper add versatility for varying applications. The optional all wheel drive transfers power to the ground to work more efficiently in mud, sand, gravel and snow.
UNMATCHED SERVICE AND SUPPORT.
A shim adjustable circle, electronic monitoring system for temps, pressures and levels and large access doors simplify service. Unmatched Cat® dealer service and support keep your machine up and running.
| Specifications | |
|---|---|
| Weight | 17,000 lb (7711 kg) |
| Front Weight | 5,510 lb (2499 kg) |
| Rear Weight | 11,490 lb (5212 kg) |
| Length | 21' 11" (6.68 m) |
| Width | 7' 8" (2.34 m) |
| Height w/ Beacon | 10' 4" (3.1 m) |
| Engine | Cat® C3.6 Tier 4F/Stage V |
| Gross Power | 120 hp (89 kW) |
| Max Speed | 24 mph (39 km/hr) |
| Fuel Capacity | 32 gal (121 L) |
| Turning Radius (Min) | 8' (2.4 m) |
| Articulation Range | 25° right and left |
| Moldboard Length | 10'/12' (3/3.7 m) |
| Moldboard Height | 21" (533 mm) |
| Circle Diameter | 53" (1346 mm) |
| Blade Side Shift | 17" (L) (432 mm), 20" (R) (508 mm) |
| Blade Range | 53° to 107.5°, +15" to -21" (+381 mm to -533 mm) |
