Force Feed Loader
- Models:
- E1050
MAXIMUM VERSATILITY.
Engineered to perform in a variety of applications year-round, the E1050 picks up soil, asphalt millings, snow, debris and other windrowed materials for high production material transfer.
HIGH PRODUCTION.

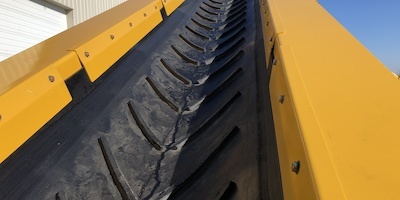

30” (762 mm) variable speed and reversible conveyor belt with 600 fpm (183 m/min) max speed discharges material directly behind or to either side of the conveyor with the optional 180° swivel conveyor.

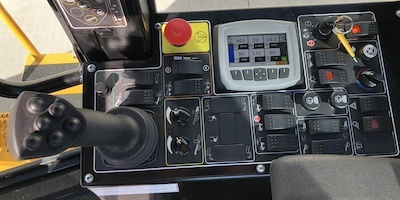

INNOVATIVE CONTROLS.
Modern electronic controls reduce the need for adjustment and are located within easy reach of the operator. Optional heated and air conditioned cab and radio for optimal operator comfort.

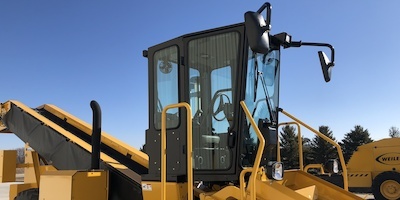

EXCELLENT VISIBILITY.
Full cab height windows provide excellent visibility. Cab is accessible from either the left or right side. Optional camera system with two cameras and full color 7” (178 mm) screen provides visibility around the machine.
OPTIMIZED PERFORMANCE.

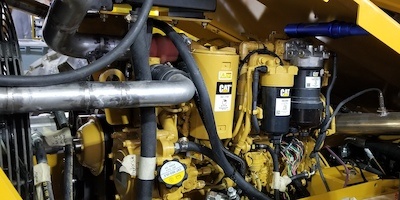

The E1050 is powered by a Cat® C4.4 engine with 137 hp (102 kW). The feeder chain and conveyor are driven by high-torque, direct-drive motors eliminating high wear planetary gear boxes.
FAST SERVICE.

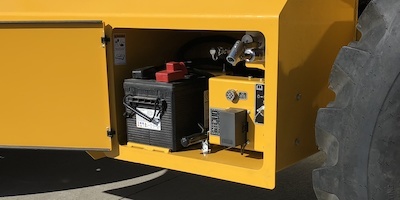

Ground level battery access, large engine access doors and Caterpillar dealer service and support keep your machine up and running.
| Specifications | |
|---|---|
| Weight | 20,160 lb (9144 kg) |
| Length | 32' 7" (9.93 m) |
| Width | 8' (2.44 m) |
| Minimum Height | 10' 9" (3.28 m) |
| Max Working Height | 13' (4.0 m) |
| Feeder Paddle Width | 36" (914 mm) |
| Feeder Paddle Height | 6" (152 mm) |
| Conveyor Length | 28' (8.5 m) |
| Belt Width | 30" (762 mm) |
| Max Belt Speed | 600 fpm (182 m/min) |
| Engine | Cat® C4. 4 Tier 4F/Stage V |
| Gross Power | 137 hp (102 kW) |
| Fuel Capacity | 60 gal (227 L) |
| Hydraulic Capacity | 54 gal (204 L) |
| DEF Capacity | 5 gal (19 L) |
