Compactors

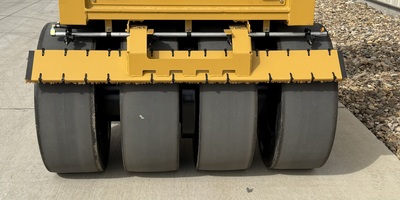

VERSATILE COMPACTION.
The 7-wheeled pneumatic roller provides kneading action for a smooth surface finish with a 56.5” (1.43 m) compaction width for optimal coverage.

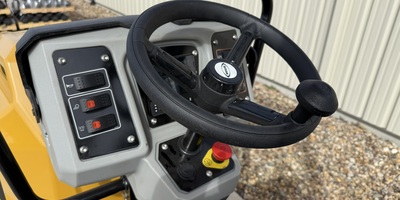

SIMPLE OPERATION.
The CT5 is simple and easy to operate with intuitive controls. Operation switches and easy-to-view LCD display provide the operator full control within easy reach of the seat.

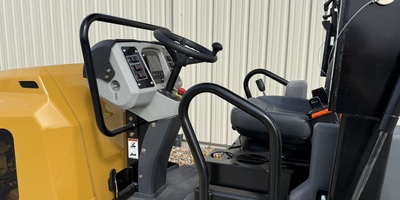

ERGONOMIC DESIGN.
The operator platform is easy to access and features a sliding seat, spacious platform for comfort and control and exceptional views of the tires, machine and jobsite. Optional foldable canopy available.

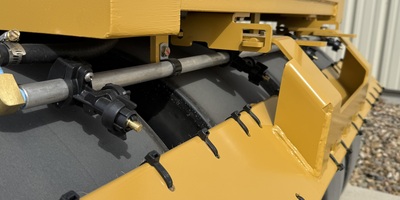

EFFICIENT WATER SPRAY.
The water spray system features a 52 gallon (197 L) water tank for minimal refilling time, variable spray modes for optimal water usage and triple filtration for reliable performance.

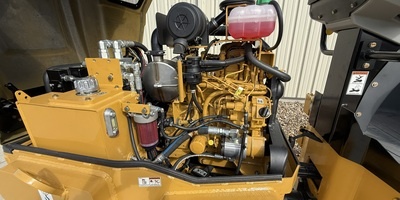

PROVEN COMPONENTS.
The CT5 features a C1.7T Tier 4 Final/Stage V engine with 48 hp (36 kW) with variable throttle and electronic engine control for reduced fuel consumption.

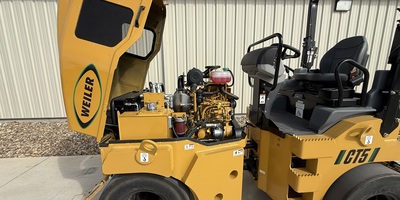

UNMATCHED SERVICE AND SUPPORT.
Engine, hydraulic and cooling remote drains are easily accessible. Color coded and numbered wiring simplifies diagnostics. Sales, service and support through the Caterpillar dealer network.
| Specifications | |
|---|---|
| Operating Weight | 9,700 lb (4400 kg) |
| Max Weight at Front Drum | 4,400 lb (1996 kg) |
| Max Weight at Rear Drum | 5,300 lb (2404 kg) |
| Length | 112” (2.84 m) |
| Width | 56.5” (1.43 m) |
| Wheelbase | 77” (1956 mm) |
| Height | 119” (3.02 m) |
| Compaction Width | 56.5” (1.43 m) |
| Turning Radius | 9’ (2.74 m) |
| Max Travel Speed | 7 mph (11.3 km/hr) |
| Engine | Cat® C1.7T Tier 4F/Stage V |
| Horsepower | 48 hp (36 kW) |
| Fuel Capacity | 17 gal (64 L) |
| Water Tank Capacity | 52 gal (197 L) |
