Compactors

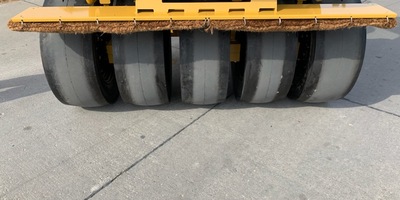

VERSATILE COMPACTION.
The 9-wheeled pneumatic roller provides
kneading action for a smooth surface finish
with a 60” (1.52 m) compaction width for
optimal coverage. Optional 1050lb (476 kg)
wheel weight kit available.

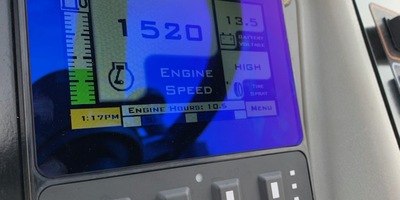

SIMPLE OPERATION.
The CT3A is simple and easy to operate
with intuitive controls. Operation switches
and easy-to-view LCD display provide the
operator full control within easy reach of
the seat.

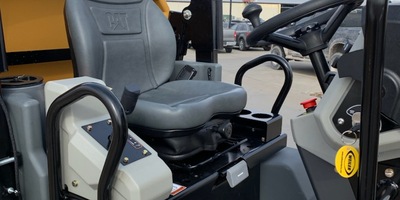

ERGONOMIC DESIGN.
The operator platform is easy to access and
features a sliding seat, spacious platform for
comfort and control and exceptional views
of the tires, machine and jobsite. Optional
foldable canopy available.

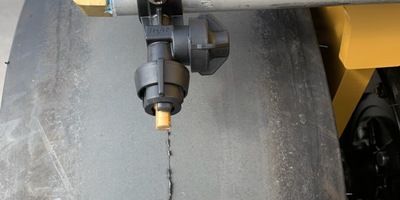

EFFICIENT WATER SPRAY.
The water spray system features a 52
gallon (197 L) water tank for minimal
refilling time, variable spray modes for
optimal water usage and triple filtration
for reliable performance.

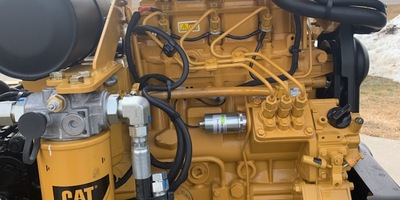

PROVEN COMPONENTS.
The CT3A features a C1.7T Tier 4 Final/
Stave V engine with 25 hp (19 kW) with
variable throttle and electronic engine
control for reduced fuel consumption.

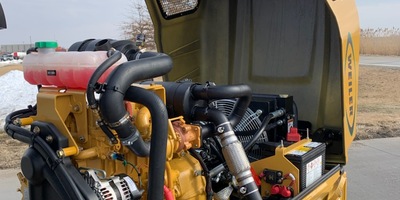

FAST SERVICE.
Engine, hydraulic and cooling remote drains
are easily accessible. Color coded and
numbered wiring simplifies diagnostics.
Sales, service and support through the
Caterpillar dealer network.
| Specifications | |
|---|---|
| Operating Weight | 5,020 lb (2268 kg) |
| Max Weight at Front Drum | 2,460 lb (1111 kg) |
| Max Weight at Rear Drum | 2,560 lb (1157 kg) |
| Length | 101" (2.56 m) |
| Width | 60" (1.52 m) |
| Wheelbase | 71" (1803 mm) |
| Height | 106" (2.69 m) |
| Compaction Width | 60" (1.52 m) |
| Curb Clearance | 20" (508 mm) |
| Turning Radius | 8' (2.44 m) |
| Max Travel Speed | 7.4 mph (11.9 km/hr) |
| Engine | Cat C1.7T Tier 4/Stage V |
| Horsepower | 25 hp (19 kW) |
| Fuel Capacity | 17 gal (64 L) |
| Water Tank Capacity | 52 gal (197 L) |
