Screeds
SMOOTHNESS FEATURES.

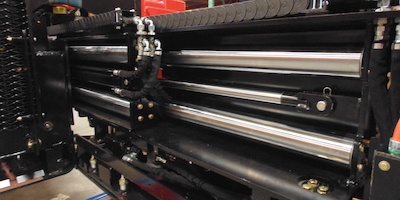

A balanced design along with rigid frame
prevent flexing while in-line extension
cylinders and full wrap around slider
bearings reduce extension deflection.
Trailing edge screed plate adjusters are
easily accessible for quick leveling.

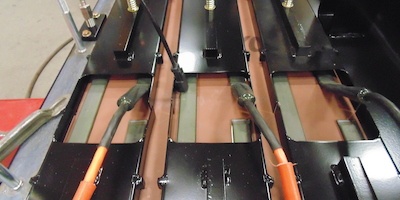

FAST HEATING ELEMENTS.
675V heating elements provide 20 minute
heat up time. U-shaped elements reduce
cold spots while zone monitoring allows
heating to continue in the event of a
sensor failure. Main screed elements
replaceable without removing the screed
plate.

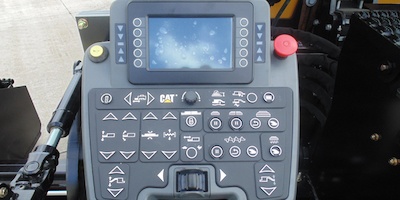

ADVANCED CONTROL.
Cat® F-Series controls integrate seamlessly
with the paver. Monitor screed heat, adjust
feeder system ratios and integrated Cat®
Grade and Slope control system are easily
accessible from the backlit, water resistant
LCD display.

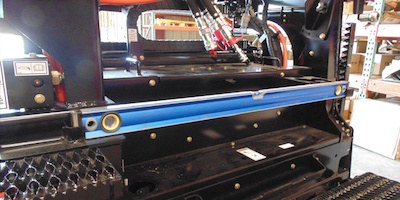

OPERATOR FRIENDLY.
Controls are conveniently located and
easily recognizable. 18.5” (470 mm) wide
folding walkway with extensions, dual side
4’ (1.2 m) level holders, built-in cup holders
and lockable tool box.

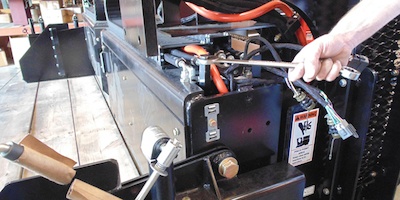

QUICK ADJUSTMENTS.
Extension angle of attack adjustment is
located on top of the extension for easy
adjustment. Inner and outer pre-strike off
adjustment are connected for one wrench
adjustment.
FAST SERVICE.

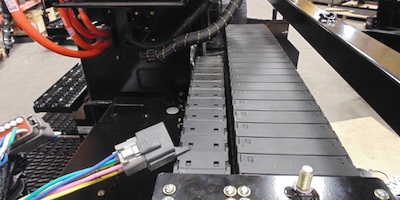

Electronic Control Module simplifies
troubleshooting procedures. Sealed, flexible
guards protect hoses and wiring while easy
component access and Caterpillar dealer
service and support keep your machine up
and running with limited down time.
| Specifications | |
|---|---|
| Standard Paving Width | 10' - 19'6" (3.05 - 5.94 m) |
| Max. Paving Width | 26' (7.92 m) |
| Extension Travel | 57" (1448 mm) |
| Screed Weight | 7,800 lbs (3538 kg) |
| Length w/o End Gates | 52" (1320 mm) |
| Length w/ End Gates | 91" (2310 mm) |
| Height | 75" (1905 mm) |
| Width w/o End Gates | 10' (3.05 m) |
| Width w/ End Gates | 10'8" (3.25 m) |
| Screed Plate Width | 24" (610 mm) |
| Extension Plate Width | 9" (229 mm) |
| 1' Extension Weight | 150 lbs (68 kg) |
| 18" Extension Weight | 225 lbs (102 kg) |
| 2' Extension Weight | 300 lbs (136 kg) |
