SE8F Front Mount Screed

SE8F Front Mount Screed

The Weiler SE8F Front Mount Screed features:

  • A balanced design with equal 3' 9" extensions
  • 24" wide main screed plate and 9" wide extension plates
  • Low main frame height to improve visibility to the feeder chamber

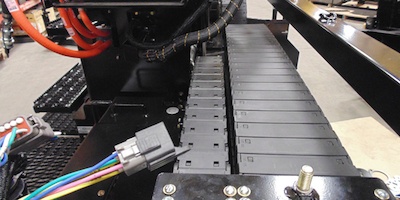

  • 675V heating elements that are replaceable without removing the screed plate
  • In-line extension cylinders to reduce wear and extension deflection

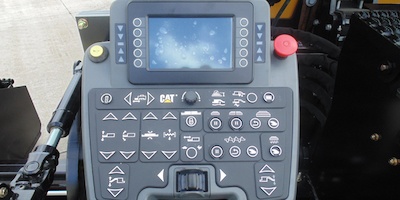

  • F-Series controls with integrated Cat grade and slope system
  • 4' level holders, shovel holders and cup holders
  • 18.5" wide folding walkway
  • One wrench pre-strike off adjustment
  • Easily accessible extension angle of attack adjustment

OPTIONAL EQUIPMENT

  • Screen Visors
  • Drop Arm Spacer
  • Heated End Gates
  • Safety Edge End Gates
  • Counterclockwise Thickness Screws
  • Cutoff Shoe
  • 1', 18" and 2' Extension
  • 12" and 18" Berm Attachment
  • 12" and 18" Tapered Notch Extension
  • 12" and 18" Vibratory Sled



Specifications
Standard Paving Width 8' - 15' 6" (2.4-4.72 m)
Max. Paving Width 20' 6" (6.25 m)
Extension Travel 45" (1143 mm)
Screed Weight 6,200 lb (2812 kg)
Length w/o End Gates 56" (1422 mm)
Length w/ End Gates 84" (2133 mm)
Height 75" (1905 mm)
Width w/o End Gates 8' (2.44 m)
Width w/ End Gates 8' 8" (2.64 m)
Screed Plate Width 24" (610 mm)
Extension Width 9" (229 mm)
1' Extension Weight 150 lb (68 kg)
18" Extension Weight 225 lb (102 kg)
2' Extension Weight 300 lb (136 kg)
